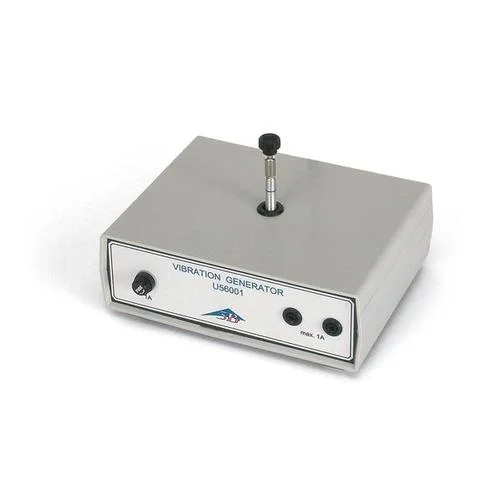

Vibration Generator – 1000701

Description

Vibration generator for exciting oscillating and waves mechanically, e.g. in coil springs, a rubber cord, a wire ring or a Chladni plate. In robust plastic housing including mounting pin with 4-mm socket for attaching accessories (Chladni plates, resonance wire, rubber band etc.). Including holder for stand rod (up to 8 mm dia.) on the rear side of the apparatus for the demonstration of standing waves in a coil spring. The generator is equipped with overload protection and is driven by a loudspeaker for smooth oscillations and fine travel stepping.

Specifications:

• Connection: via 4-mm safety sockets
• Impedance: 8 Ω
• Maximum amplitude: 5 mm
• Frequency range: 0 up to 20 kHz
• Minimum operating current: 10 mA
• Overload protection: 1 A fuse
• Dimensions: approx. 200x160x70 mm³
• Weight: aprox. 1.4 kg

13 x 11 x 5 in

Features :

• Hygienic Product : Not Specified
• Allergy : Not Specified

Vibration Generator – 1000701

• UPC:Not Specified
• GTIN/ITF Barcode : Not Specified
• Units of Measure : Not Specified
• Overall Product Length : Not Specified in
• Overall Product Width : Not Specified in
• Overall Product Height : Not Specified in
• Weight Capacity : Not Specified lbs
• Actual Product Weight : 3.46
• Product Assembly : Not Specified
• Product Installation : Not Specified
• Country of Origin : Not Specified
• Case QTY : Not Specified/case
• Case Weight : Not Specified
• Ships Via Freight : No
• Proposition 65 Warning : Not Specified
