Description

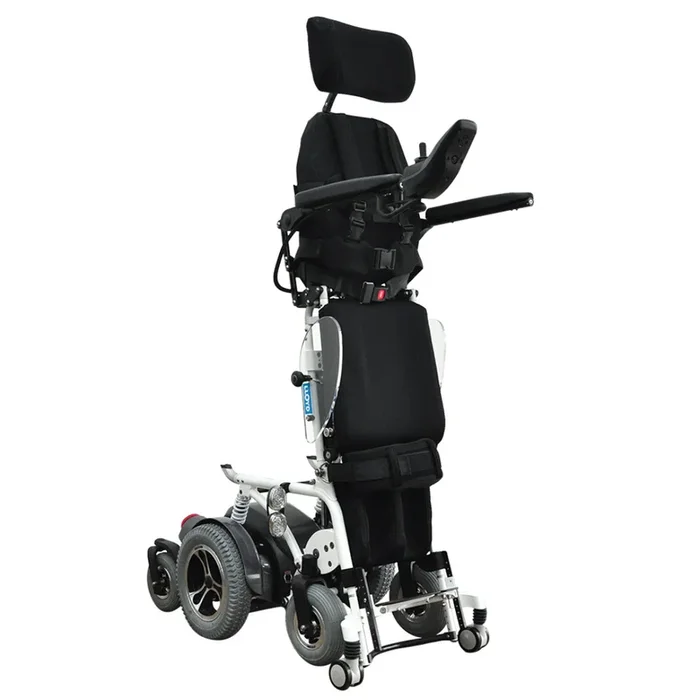

Draco standing wheelchair is the bestelectric standing wheelchair that equipswithfull function capability allowsyou to move, stand, sit, recline and lie downin safe and comfortable positions. The footrest, armrest and backrest move in a coordinated way simultaneously, so user will not feel the muscle pull when changing from standing-sit-lie down position.
With Draco, you can minimise the risk and effort of transferring user during day time as user can take a nap in lie-down position.
Features:
- Fully powered for lie down, stand, sit and recline positions.
- Maximum speed up to 8 km/hr (5 miles/hr).
- Travels up to 30 km (18.5 miles) with a full charge.
- Equipped withDynamic LED graphic display Controller (DX2) for precise user control.
- Adjusts speed automatically during standing position for safety.
- 8 wheels to provide excellent stability especially during standing and lie down position.
- Motorized wheels locate in the center to ensure tight turning radius of 66 cm (30″).
- Energy saving LED lights for night out.
- Adjustable headrest for extra comfort.
- H-shaped safety harness.
- Spring suspensions for extra comfort over rough terrains.
- Angle adjustable footrest to allow standing posture in different stages.
- Adjustable leg length and seat depth to fit users with different leg length.
*The form below is needed in order to build your custom Draco to fit you needs. Once your purchases, please download the form. A product specialist will contact you after yoru purchase to finalize
Click Here To Fill Out The Assessment Form.
Click Here To View The Draco Guidelines For Measurement
Specifications
| Seat Width Choices | 40cm (16″) for 16″ seat / 46cm (18″) for 18″ seat |
| Seat Depth (Adjustable) | 40-52 cm (18″- 20″) adjustable |
| Backrest Height | 64 cm (25.2″) |
| Total Width | 64.5cm (25.4″) for 16″ seat / 69.5cm (27.4″) for 18″ seat |
| Total Length | 115cm (45.3)″ |
| Total Height(Front) | 143.5cm (56.5″) w/Headrest; 118cm (46.5″) W/o Headrest |
| Total Weight | 147kg (14″) 150kg (16″) 153kg(18″) |
| Ground clearance | 5cm (2″) |
| Open Size 18″ | (L x W x H) 114cm x 75cm x 142cm |
| Open Size 16″ | (L x W x H) 114cm x 70cm x 142cm |
| Open Size 14″ | (L x W x H) 114cm x 65cm x 142cm |
| Footrest to Seat Length (Adjustable) | 44.5 – 52cm (17.5″- 20.5″) adjustable |
| Motor | DC24V, 320W |
| Battery | 12V36Ah X 2 pcs |
| Packing Dimension (W x L x H) CM | 109x66x93cm (14″) 109x68x93cm (16″) 109x72x93cm (18″) |
| Package weight | 155KG (310 lbs) |
| Front Wheel | 9.5″ |
| Mid Wheel | 13″ |
| Rear Wheel | 3″ |
Warranty
All our Standing Wheelchairs Series come with 2 years global warranty and support services. We have excellent after sales service record with more than 10,000 happy users worldwide. So you can count on our commitment and be one of our happy customers.
